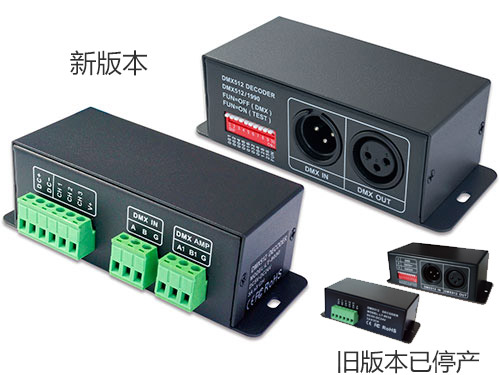

LT-8030 LED DMX Decoder - Requires DMX Master

For RGB LED Strip, 5 / 12 / 24V, 12A (4A x 3 Channel), Dimmable
$90.78
Features DMX to PWM Decoder, 2 x DMX512 socket: XLR-3, Green terminal (with signal amplification function)
Max Current 12A (4A x 3 Channel)
Compatible product RGB / Single Colour LED Strip
Output 5 / 12 / 24V
Dimming Dimmable
Waterproof Non-waterproof
Input Range 5-24V DC
Dimensions 125 mm (L) x 52 mm (W) x 40 mm (D)
Warranty 5 Years

Customize your order

In Stock at our Auckland Warehouse
Order before 4:30pm and we'll ship on the same working day.
What item is right for you?

0800 66 65 64

LT-8030 3CH CV DMX-PWM Decoder :

LT-8030

Input signal DMX512
Input power DC5V - DC24V
Max load current 4A ×3CH Max 12A
Max output power 60W/144W/288W(5V/12V/24V)
Gray scale level 256 levels/CH
DMX512 socket XLR-3, Green terminal (with signal amplification function)
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L125×W52×H40mm
Package Size L135×W70×H50mm
Weight (G.W) 300g



LT-8030 LED DMX Decoder - Requires DMX Master
