LT-312RF Multi-function LED Controller - Colour Temperature

For Warm White & Cool White Colour Temperature Strip, 12 / 24V, Onboard Button / Remote Control, 12A (6A x 2 Channel), Dimmable
$104.57
Features Colour Temperature, Remote, Scene Saving
Max Current 12A (6A x 2 Channel)
Control Type Onboard Button / Remote Control
Compatible product Warm White & Cool White Colour Temperature Strip
Max Remote Distance 100m
Output 12 / 24V
Dimming Dimmable
Waterproof Non-waterproof
Input Range 12-24V
Dimensions 211 mm (L) x 40 mm (W) x 30 mm (D)
Warranty 5 Years

Customize your order

In Stock at our Auckland Warehouse
Order before 4:30pm and we'll ship on the same working day.
What item is right for you?

0800 66 65 64
2



LT-312RF LED Dim controller

LT-312RF LED controller dedicated to adjust the LED lights' color temperature and brightness. You can change light environment and add life amuse according to your own moods and preferences. LT-312RF adopts advanced PWM (Pulse Width Modulation) digital dimming technology , PC engineering plastic, soft button control and exquisite appearance. It can be controlled by the buttons on the receiver and also by RF remote control, which widely used to control the LED decorative lights that require color temperature adjustment, such as LED light strip, LED panel lights, LED downlight.

Note: LT-312RF can be connected to our constant current power repeater to control high-power LED lights.



Performance Features

1、5~100% brightness adjust, 1024 scale levels.

2、 Automatically adapt to the single color Led light which works between DC12V-24V.

3、2 Channels output control, maximum output 12A total, sustain to full-load work.

4、25%, 50%75%, 100% brightness easy to select.

5、Speed and brightness mode for select

6、 2 DIY modes



Technical Specs:

LT-312RF

Input voltage DC12V~DC24V
Max current load 6A/CH×2 Max 12A
Max output power 144W/288W(12V/24V)
Remote control distance 100m
Grey scale level 1024 Levels
working temperature -30℃~55℃
Dimension L211×W40×H30(mm)
Package Size L313×W50×H32(mm)
Weight (G.W) 230g

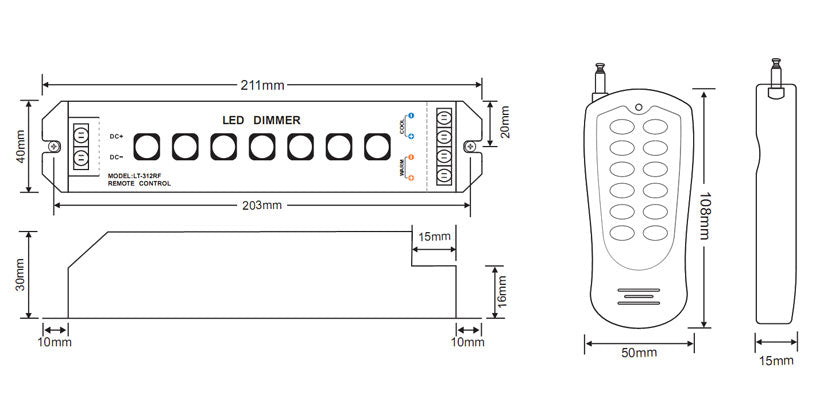

Product Size:



Operating Instructions:

There are 8 dunction keys on the controller:

ON/OFF, PAUSE, MODE, DIM, SPEED/BRT+, SPEED/BRT-, M1, M2

Learm ID: Press button ON/OFF on the receiver for 3 seconds, it is on the state of addressing when RF green indicator light is on. Then press any button on remote, the indecator light turns off, the controlling between remote control and receiver is activated.

Cancelling ID: Press the ON/OFF key over 5 seconds, the RF green indicator light is on and then off, Press any button on remote control, the RF green indecator light start flickering, it means the controlling between remote control and receiver is cancelled.



Wiring Diagram

1.Connected to the LED Strip with 2 Different Color
Temperatures
2.Connected to the LED Strip with 2 in 1 Color Color Temperatures



3. Power repeater can be added to expand power when the power is not enough. Constant current power repeater also can be added if control the high power LED at the same time.



Related Products:

LT-311RF

Input voltage DC12V~DC24V
Working current 6A/CH×3 Max 18A
Max output power 216W/432W(12V/24V)
Grey scale level 1024 Levels
working temperature -30℃~55℃
Dimension L211×W40×H30(mm)
Package Size L313×W50×H32(mm)
Weight (G.W) 230g
