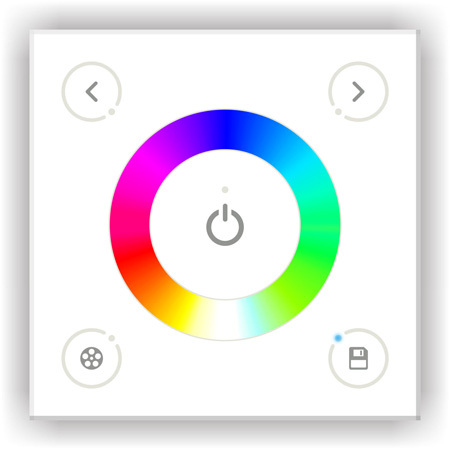

D3 LED Colour Controller - Glass Panel, RGB, DC

For RGB LED Strip, 12 / 24V, Touch Control, 12A (4A x 3 Channel), Dimmable
$60.74
Features Glass panel, RGB , DC
Max Current 12A (4A x 3 Channel)
Control Type Touch Control
Compatible product RGB LED Strip
Output 12 / 24V DC
Dimming Dimmable
Waterproof Non-waterproof
Input Range 12V ~ 24V DC
Dimensions 86mm (L) x 86 mm (W) x 36mm (D)
Warranty 5 Years

Customize your order

In Stock at our Auckland Warehouse
Order before 4:30pm and we'll ship on the same working day.
What item is right for you?

0800 66 65 64
D series touch panel controller—single zone series | LTECH

Product feature



Latest human detection design. Capacitive touching sensor
High accuracy touching IC+special post-processing, the touching accuracy is highly strengthened, soft to the touch but highly sensitive.
Touching along with chord music & LED indicator
LED indicator emits pale blue light when touching the keys, along with beautiful chord music. Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.
d3
T-PWM dimming technology/
4096 gray scale
Pioneered T-PWM dimming technology+ 4096 gray scale makes an almost perfect dimming/ color-mixing performance.
d2
wiring diagram













D series touch panel controller—single zone series



D series wall-mounted touch panel controller –single zone series is widely installed in commercial / office/household. Range from Single
color/ CT/RGB/RGBW four types. Applies for various kinds LEDs.



D series touch panel controller absorts the best controlling technology from other manufacturers. to provide users with more superior
items.

  • simple fashion and decent appearance design.
  • Unique structure, super easy to install/remove.
  • high accuracy touching IC+special post-processing ,the touching accuracy is highly strengthened.
  • Fool type operation, easy to use.
  • Touching along with chord music & LED indicator.Visual & Auditory & Touch 3 layers to feel the light-changing
  • synchronously.
  • Pioneered T-PWM dimming technology+ 4096 gray scale makes an almost perfect dimming/ color-mixing performance.



Product parameter



D1

Input voltage DC12V~DC24V
Max current load 4A x3CH Max 12A
Max output power 144W/288W(12V/24V)
Gray scale level 4096
Working temperature -20℃~60℃
Dimensions L86×W86×H36mm
Package Size L112×W112×H48mm
Weight (N.W.) 162g

D2

Input voltage DC12V~DC24V
Max current load 4A x2CH Max 8A
Max output power 96W/192W(12V/24V)
Gray scale level 4096×4096
Working temperature -20℃~60℃
Dimensions L86×W86×H36mm
Package Size L112×W112×H48mm
Weight (N.W.) 162g

D3

Input voltage DC12V~DC24V
Max current load 4A x3CH Max 12A
Max output power 144W/288W(12V/24V)
Gray scale level 4096×4096×4096
Working temperature -20℃~60℃
Dimensions L86×W86×H36mm
Package Size L112×W112×H48mm
Weight (N.W.) 162g

D4

Input voltage DC12V~DC24V
Max current load 4A x4CH Max 16A
Max output power 192W/384W(12V/24V)
Gray scale level 4096×4096×4096×4096
Working temperature -20℃~60℃
Dimensions L86×W86×H36mm
Package Size L112×W112×H48mm
Weight (N.W.) 162g





D3 LED Colour Controller - Glass Panel, RGB, DC
